The TC2300 PCIe® Gen 5x4 4CH DRAMless 12GB/s

The TenaFe TC2300 is an industry-leading PCIe® Gen 5 NVMe™ SSD controller, delivering impressive performance with speeds of up to 12GB/s. This DRAMless controller features 4 channels operating at 3600 MT/s.

Product Brief

APPLICATIONS

Designed for a Wide Range of High-Performance Client Applications

AI PCs and Notebooks
Gaming Systems
High-Performance Client

OVERVIEW

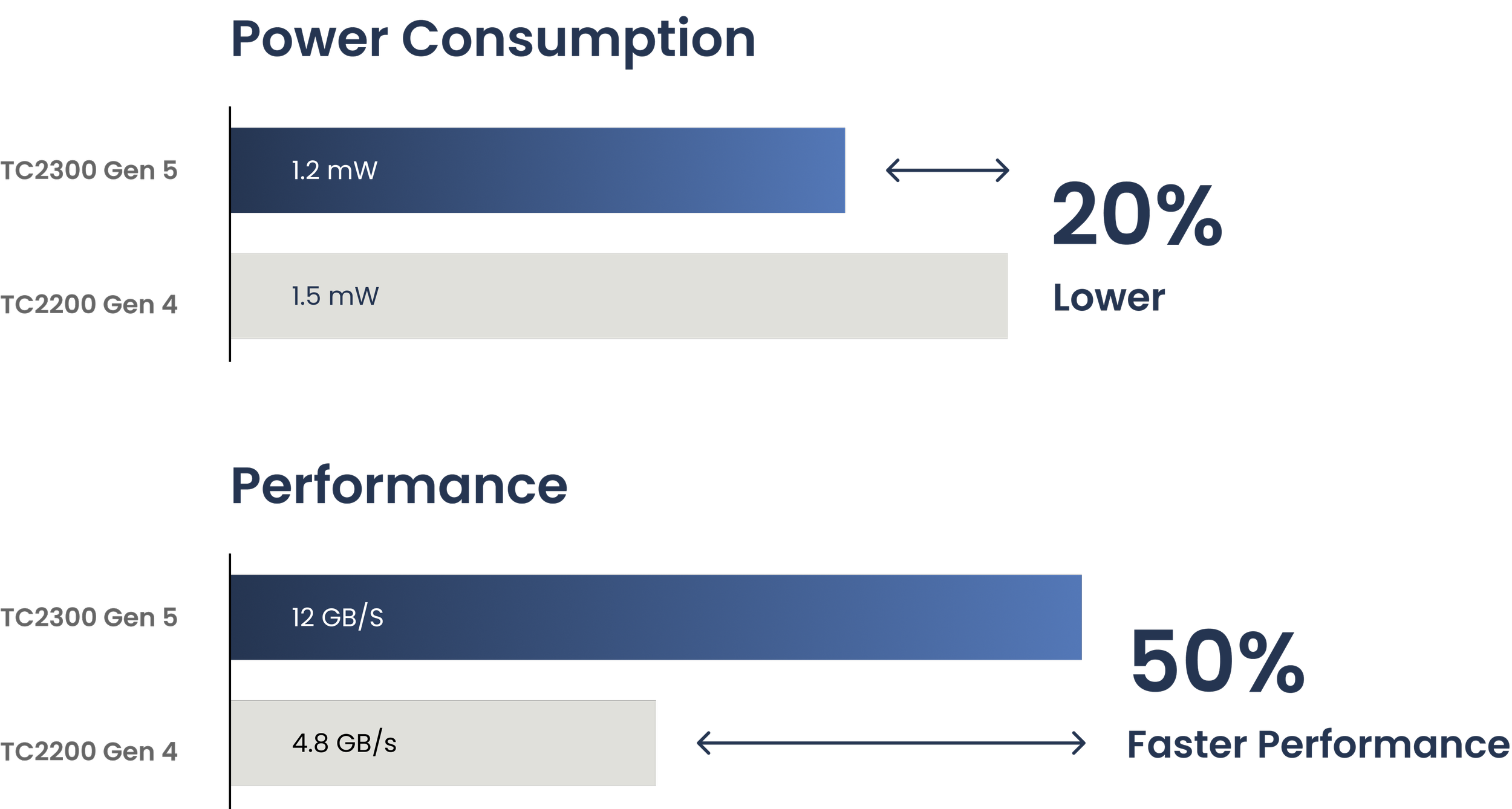

TC2200 Gen4 VS TC2300 Gen5

Optimized for high-performance client applications for workstations and gaming platforms, with sequential speeds up to 12 GB/s.

Built on the TSMC 6nm process and with power consumption of less than 2.5W.

FEATURES

TenaFe's technology breaks through barriers with its TC2300 DRAMless controller solution by offering impressive performance capabilities of up to 12GB/s at less than 2.5W active power with leverage of Host Memory Buffer (HMB) feature that enables low power and cost effective BOM designs ideally for M.2 2280 SSD form factors.

Host Memory Buffer

Using FlexLDPC technology, an in-house developed advanced LDPC error correction engine, provides best in-class latency, quality of service (QoS), and endurance support for the latest TLC and QLC NAND Flash technologies.

Data Integrity

The TC2300 delivers up to 12GB/s throughput and 1.5M IOPS with SCA Mode, offering an 11% increase in sequential speed and a 51% boost in random performance. With support for 3600MT/s NAND IO, it’s optimized for high-speed, high-efficiency storage solutions.

SCA Boost

Solid State Drive (SSD) without on-board DRAM, is widely adopted across personal computer (PC) and embedded markets. As SSDs scale to multi-terabyte capacities, conventional SSD architecture that are dependent upon DRAM present challenges with respect to bill of material (BOM) costs, power consumption, thermals, and the increasing need to provide small form factor SSDs such as M.2 2230 and BGA. TenaFe’s technology breaks through barriers with its TC2300 DRAMless controller.
