The PB50i BGA PCIe® Gen 4 NVMe™ BGA SSD

The TenaFe PB50i BGA is an industry-leading PCIe® Gen 4 BGA NVMe™ SSD solution supporting Gen 4x4 capacities up to 960 GB. It resides in a compact BGA dimension of 16 x 20mm and is designed for wide-temperature operation from -40°C to 80°C, making it ideal for industrial and edge applications.

APPLICATIONS

Designed for Emerging Technologies

  • Autonomous Vehicles

  • Metaverse Technology (AR/VR)

  • IoT Devices

  • Embedded Applications

The PB50i BGA holds all the vital elements of any SSD-- a controller, NAND flash yet DRAMless in one tiny component. Focusing on compactness, the TB2201 is about a fifth of the M.2 2280 SSD and is soldered down, enabling vibration-resistant and shock-proof applications.

Power in a Tiny Package

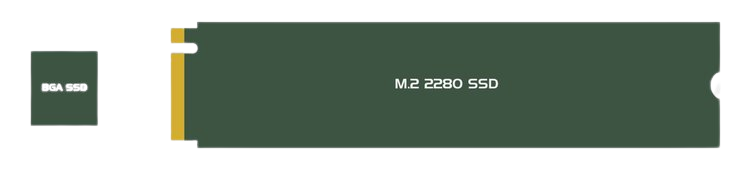

The TB2201 BGA SSD is 16 x 20mm, while the established M.2 2280 SSD is 22 x 80mm.

The PB50i BGA integrates the I-Temp TC2201 controller, enabling reliable operation across industrial temperature ranges from -40°C to 85°C.

Wide-Temp Available for Industrial Standard

SPECIFICATIONS

DRAM

Performance

Flash

Interface

• TLC NAND Flash

• PCIe® Gen 4x4
• NVMe™ 1.4

• Sequential Read 3.65 GB/s
•Sequential Write 3.4 GB/s

• DRAMless
• Support HMB

Learn more about the TB2201 PCIe® Gen 4 NVMe™ BGA SSD
